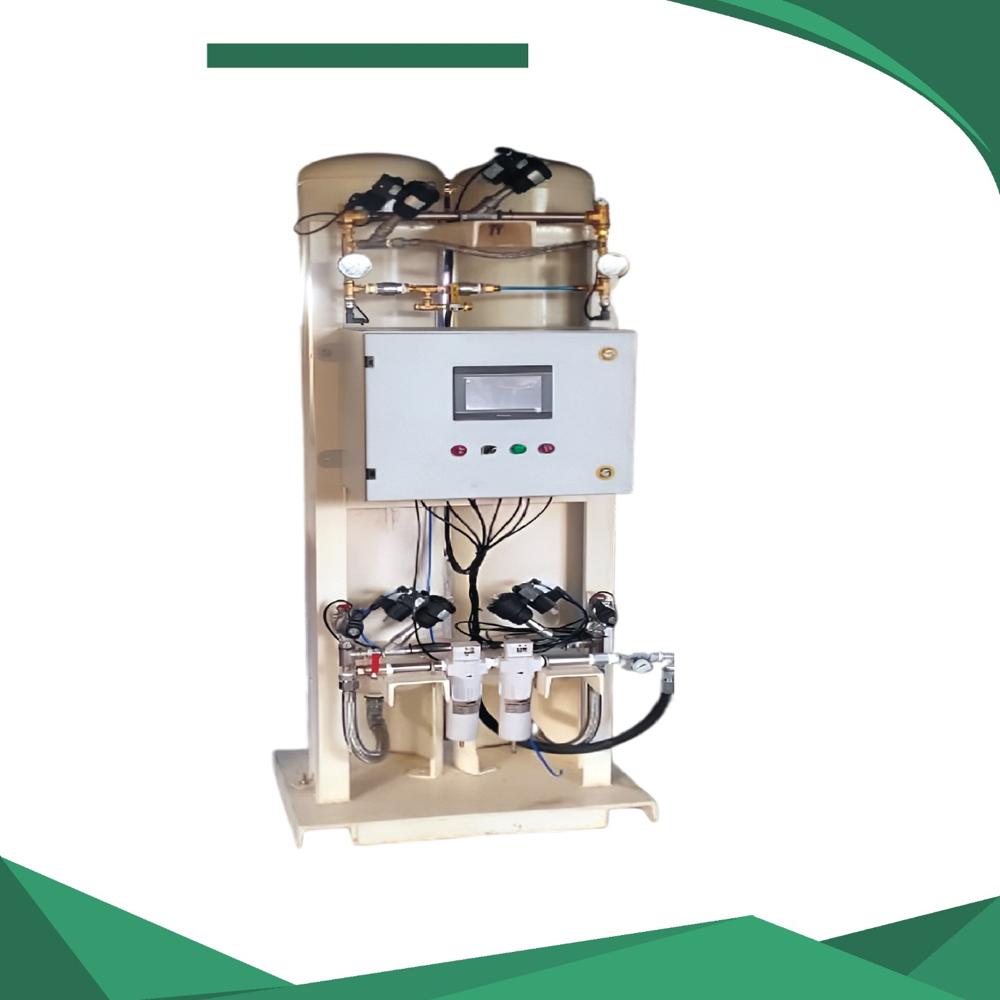

AST-2 (95 LPM( 5.7m3/Hrs)

AST-2 (95 LPM( 5.7m3/Hrs) Specification

Type
Nitrogen Generator

Production Capacity
95 LPM (5.7m3/hr)

Production Rate
979 SCFH (25.74 Nm3/hr)

Control System
Digital Control Panel

Purity(%)
99.5%

Voltage
220 V ~ 10%, 50/60 Hz, 3.0 A or 220 V ~ 10%, 50/60 Hz, 1.0 A

Working Pressure
85-90 psig (586-621 kPa or 5.8 - 6.2 barg)

Weight (kg)
327 kg (721 lb)

Dimension (L*W*H)
31 x 24 x 68 in (84 x 69 x 173 cm)

Feed Air Requirements
Flow Rate: 48 SCFM (1.3 Nm3/min); Clean, Oil-Free and Dry 'Plant Air'; Pressure: 109 psig (752 kPa) minimum; Temperature: 109F (42C) maximum; Dew Point: 40F (4.4C) maximum

Product Dew Point
-65F (-54C)

Compressed Air Inlet
1/2" FNPT

Ambient Operating Conditions
40F (4C) to 104F (40C)

Physical Connections
1/2" FNPT

Product Gas Outlet
Locate in a well-ventilated area protected from weather elements and 40F (4C) to 104F (40C)

AST-2 (95 LPM( 5.7m3/Hrs) Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About AST-2 (95 LPM( 5.7m3/Hrs)

Our PSA (Pressure Swing Adsorption) Oxygen Plant is a highly efficient, on-site gas generation solution designed to provide a continuous and reliable supply of high-purity oxygen. Utilizing advanced Zeolite Molecular Sieve (ZMS) technology, this plant extracts oxygen directly from the atmospheric air, eliminating the need for expensive and logistically challenging liquid oxygen or gas cylinders.

Whether for a multi-specialty hospital or a heavy industrial facility, our plants are engineered for 24/7 operation with minimal human intervention.

Advanced Nitrogen Generation Technology

The AST-2 harnesses state-of-the-art technology to consistently produce nitrogen at a remarkable purity of 99.5%. Its advanced digital control panel provides enhanced system monitoring and easy adjustments, streamlining integration into various process environments.

Optimized for Versatile Industrial Applications

With its robust construction and capacity to operate across a wide range of ambient conditions, the AST-2 is engineered for dependable use in numerous industrial settings. Its compact footprint allows for installation in well-ventilated, protected areas, maximizing operational flexibility.

FAQ's of AST-2 (95 LPM( 5.7m3/Hrs):

Q: How is the AST-2 Nitrogen Generator installed for optimal performance?

A: The AST-2 should be installed in a well-ventilated area sheltered from weather, with ambient temperatures maintained between 40F (4C) and 104F (40C). Physical connections for the compressed air inlet and gas outlet are 1/2" FNPT, ensuring straightforward integration with your existing infrastructure.

Q: What are the feed air requirements for the AST-2?

A: The generator requires a supply of clean, oil-free, and dry plant air at a flow rate of 48 SCFM (1.3 Nm3/min), a minimum pressure of 109 psig (752 kPa), a maximum temperature of 109F (42C), and a dew point no higher than 40F (4.4C). Meeting these requirements ensures optimal system operation and product gas purity.

Q: When should the nitrogen purity be verified during operation?

A: It's advisable to check the nitrogen purity periodically, especially after system maintenance or changes in ambient or feed conditions. The AST-2 is designed to consistently deliver 99.5% purity, but regular verification using appropriate analyzers helps ensure ongoing quality.

Q: Where should the product gas outlet be located?

A: The gas outlet must be situated in a well-ventilated area that is protected from weather elements and maintains ambient temperatures within the recommended range. Proper placement reduces exposure risks and safeguards both personnel and equipment.

Q: How does the AST-2 control system enhance usability?

A: The digital control panel enables precise monitoring of key parameters and allows operators to adjust settings easily. This user-friendly interface supports efficient and reliable operation, minimizing downtime during process adjustments or maintenance.

Q: What benefits does the AST-2 offer for industrial operations?

A: Key benefits include dependable nitrogen supply at high purity, robust construction, easy installation, and user-friendly controls. These features make the AST-2 suitable for continuous or demanding applications, improving process efficiency and reducing reliance on external gas supply.
